W12-40×3000 4 rollers rolling machine

Home / Product center / 4-Rollers Rolling Machine / W12-40×3000 4 rollers rolling machine

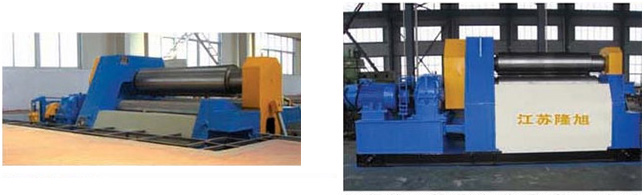

W12-40×3000 4 rollers rolling machine





PERFORMANCE FEATURES

This machine adpots the four-roller  structure with the upper roller as the main drive.providing the plates bending with torque through the engagement between the gear of the moderator and the gear of the upper roller.
The lower roller makes verial movemerits and imposes aforce on the piston throug  the hydraulic oil in the hydraulic cyinder so as to clamp the palte tight side rollers are arranged on the two sides of the lower roller.and make inclining movement along the guide rall; And provide drive througt the screw.the nut.the worm and the lead screw.
The advantage of the machine is that the preliminary bending and rolling of the top ends of the plates can be conducted on the same machine
Technical parameters:

規(guī)格型號Model 最大卷制厚度Max.rollingthickness(mm) 最大預彎厚度Max.pre-rollingthickness(mm) 最大卷制寬度Platewidth(mm) 上輥直徑Diameterof upper roller(mm) 主電機功率Main motorpower(kw)
W12NC-10×2000 10 9 2000 240 7.5
W12NC-12×2500 12 11 2500 280 11
W12NC-16×2500 16 13 2500 310 15
W12NC-20×2000 20 16 2000 300 15
W12NC-20×2500 20 18 2500 360 22
W12NC-25×2000 25 20 2000 350 22
W12NC-25×2500 25 20 2500 400 37
W12NC-30×2000 30 25 2000 300 37
W12NC-30×2500 30 25 2500 400 37
W12NC-30×3000 30 25 3000 470 45
W12NC-40×3000 40 32 3000 550 55
W12NC-50×3000 50 40 3000 610 55
W12NC-60×3000 60 50 3000 670 75
W12NC-70×3000 70 60 3000 730 75
W12NC-80×3000 80 65 3000 780 90
W12NC-90×3000 90 75 3000 820 90
W12NC-100×3000 100 80 3000 880 110
